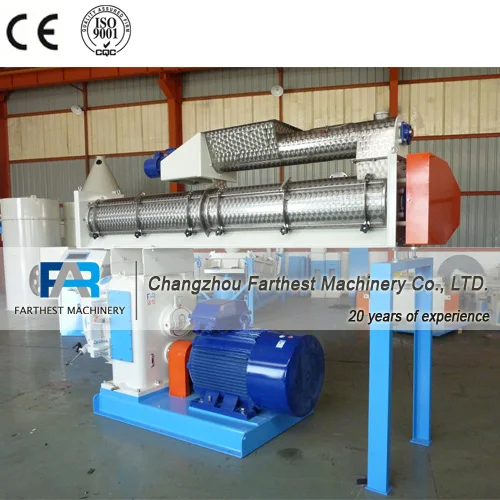

Ring Die Pellet Making Machine Stainless Steel For Sheep Goat Farming Feed

Brand Name : FAR

Model Number : SZLH508

Certification : CE ISO9001

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 50 sets per year

Delivery Time : 30 days

Packaging Details : iron pallet

ID of Die : 508mm

Motor : Siemens

Bearing : SKF

Power : 110kw

Voltage : 380V

Capacity : 5-20tph

Warranty : 1 year

Condition : New

Contact Now

Ring Die Pellet Making Machine Stainless Steel For Sheep Goat Farming Feed

We are manufacturing various pellet mill and complete project, such as high quality fish feed pellet mill, aqua feed pellet machine, shrimp pellet machine, chicken feed pellet machine, cattle feed pellet machine, crab feed pellet mill and so on.

Product Description

Features

1. Gear directly-connecting driving is adopted for high efficiency;

2. Full stainless steel feeder; variable pitch anti-bridging structure; Imported FC control;

3. Full stainless steel conditioner with axial steam spraying extends the conditioning and cooking time;

4. Main gear and pinion shaft adopt the carbonizing quenching with high accuracy; smooth driving, low noise and long service life;

5. Gearbox and driving holes’ accuracy are guaranteed by specialized casting supplier and CNC;

6. The bearing and oil seal in the main drive are imported, and a specialized lubrication oil return system is available to ensure reliable bearing lubrication;

7. 3pcs of quick disassembling type precisely-cast die clamps are adopted to connect the die and quill flange, resulting in convenient and quick disassembling of die;

8. Pellet chamber door and feed chute are fully made of stainless steel with high anti-corrosion ability and long service life;

9. The connection between motor and gearbox adopts new type S-shape spring coupling for more convenient disassembling and assembling and more reliable use.

Main Technical Parameter

Model

Output

(t/h)

Main Power

(kw)

Power Of Conditioner

(kw)

Power Of Feeder

(kw)

ID Of Die

(mm)

Pellet Size

(mm)

SZLH508

6-20

110/132/160

7.5

1.5/2.2

Φ508

Φ2-18
