Double Screw Floating Fish Feed Making Machine , Aqua Feed Steam Extruder Equipment

Brand Name : FAR

Model Number : SPHS-S

Certification : CE ISO9001

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Supply Ability : 30 sets per year

Delivery Time : 45 days

Packaging Details : iron pallet

Main Power : 55-315kw

Motor : Siemens

Warranty : 1 Year

Material : Steel

Bearing : SKF

Output : 0.5-10tph

Contact Now

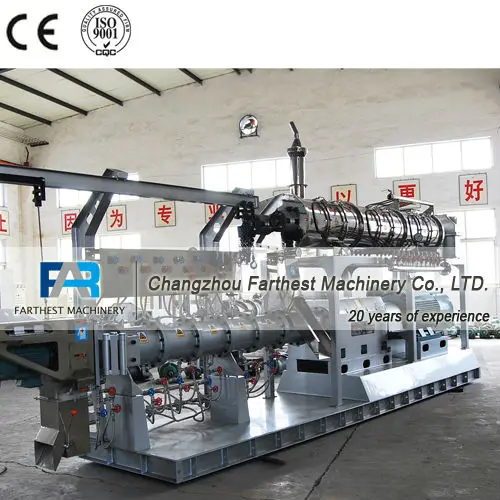

Double Screw Floating Fish Feed Making Machine , Aqua Feed Steam Extruder Equipment

Extruder of all sorts can be offered by Farthest Machinery, such as dryer type extruder, wet type extruder, single screw extruder, double screw extruder and so on. It can be used widely in both floating aquatic feed and sinking aquatic feed.

Product Description

Features

1. Stainless steel DDC with 12 steam injectors and 6 liquid nozzles.

2. The gearbox can stand strong torque and thrust up to 400hp.

3. Jacket design barrel with liner can achieve heating/cooling function. Steam and water can also be injected directly into the barrel.

4. Fast replacing mechanism for die and screw and on-line adjustment for cutter.

5. Screw is made of special anti-wear alloy with L/D ratio up to 18:1 that assures smoothly production for all kinds of sinking/floating feed.

Main Technical Parameters

Parameters Model	Main Power (kw)	Feeder Power (kw)	Conditioner Power (kw)	Cutter Power (kw)	Capacity (t/h)
SPHS95S	55	1.5	5.5	3	0.5~1.2
SPHS98S	75	1.5	5.5	3	0.6~1.6
SPHS118S	90	1.5	11	4	0.8~2.0
SPHS120S	110	1.5	11	4	1.5~2.2
SPHS145S	132	1.5	15	5.5	2.0~4.0
SPHS148S	160~200	1.5	15	5.5	3.0~6.0
SPHS150S	200~315	2.2	18.5	5.5	8.0~10.0

Details

Double Screw Floating Fish Feed Making Machine , Aqua Feed Steam Extruder Equipment
